Single Storey, Monopitch House Plan (430sqm)


A Three Bedroom Modern One (Single) Storey Home Design

A warm and welcoming residential architectural plan, which makes use of natural sunlight to brighten up the interior spaces. Living spaces are positioned around an outside living area and swimming pool, ideal for entertaining. On entry, occupants in this house will walk down a modern foyer and be greeted by the sound of running water and a koi pond. The main living space unfolds onto the outside covered patio, ensuring a seamless connection to the natural surroundings. Each of the three bedrooms have their own private wing. A spacious design ideal for an expanding family in search for a place to call home.
Features: 3 Bedrooms, 3 Bathrooms, 2 Garages, Study, Playroom, Open-plan Kitchen, Dining & Living, Scullery, Staff quarters, Pool, Covered patio

Additional information






Garage, Pool

Included in price plan

Digital plans in PDF format (uneditable) of the design which includes:

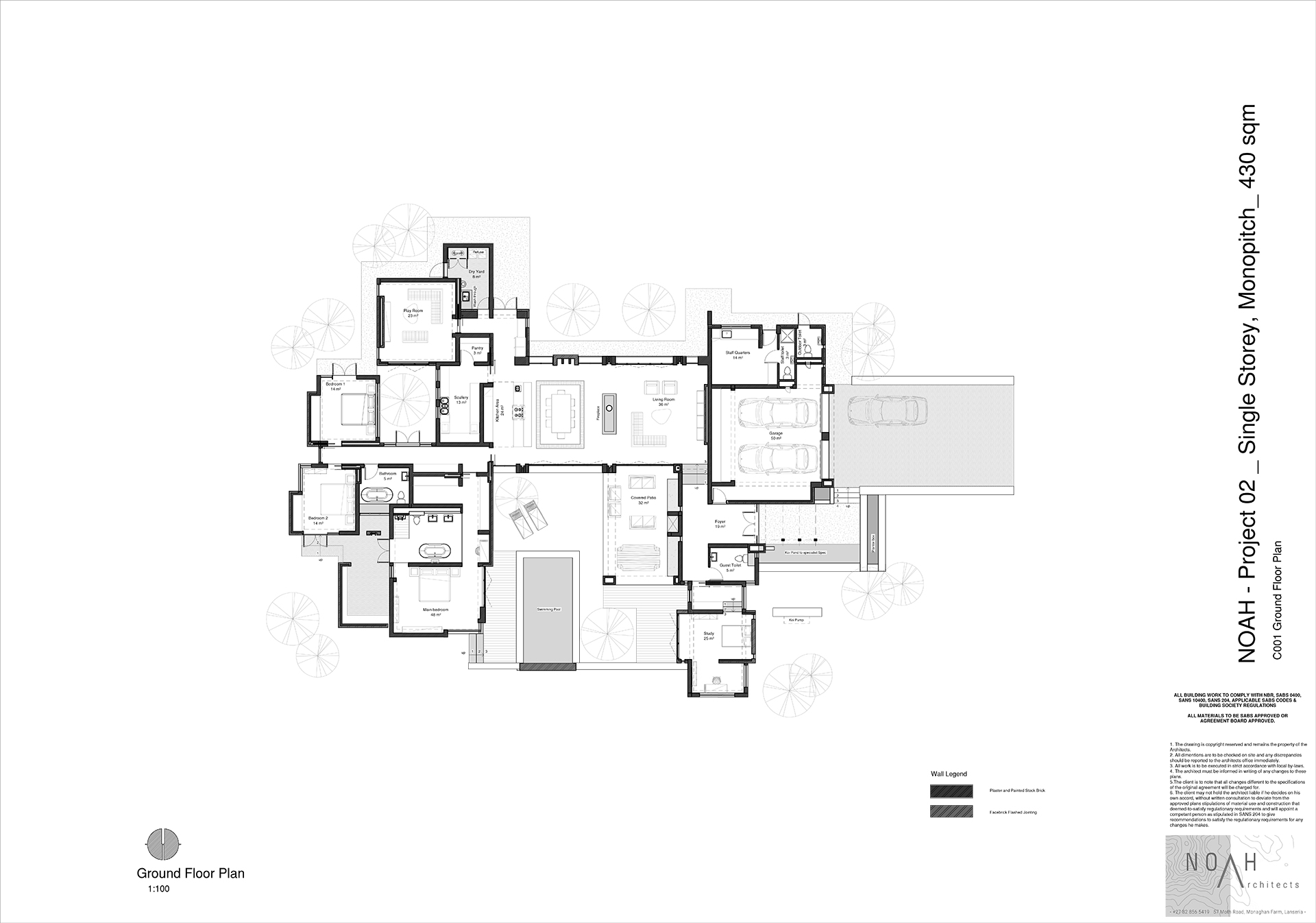

  • Ground floor plan 1:100
  • Roof plan 1:100
  • Elevations 1:100
  • Sections 1:50
  • Lighting layout 1:100
  • Hot water reticulation and gas layout 1:100
  • Window and door schedule 1:100

Excluded in price plan

  • Professional service to complete and certify Site Development plan and working drawing set for council submission
  • Alterations or additions
  • Electronic format of plans in the form of DWG or Revit
NOTE: Contact NOAH for a quotation to assist with the exclusions at a time-based fee of R650.00 per hour.

Terms & Conditions

  • Read our Terms and Conditions here for more information
  • No refund and no return policy

3 Bedrooms

3 Bathrooms

2 Garages

Open plan kitchen, dining and living
